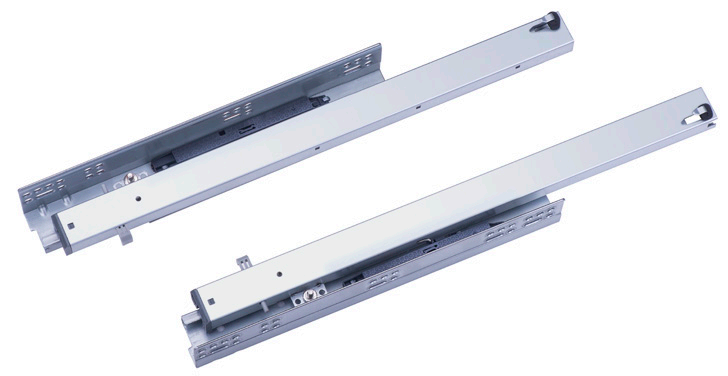

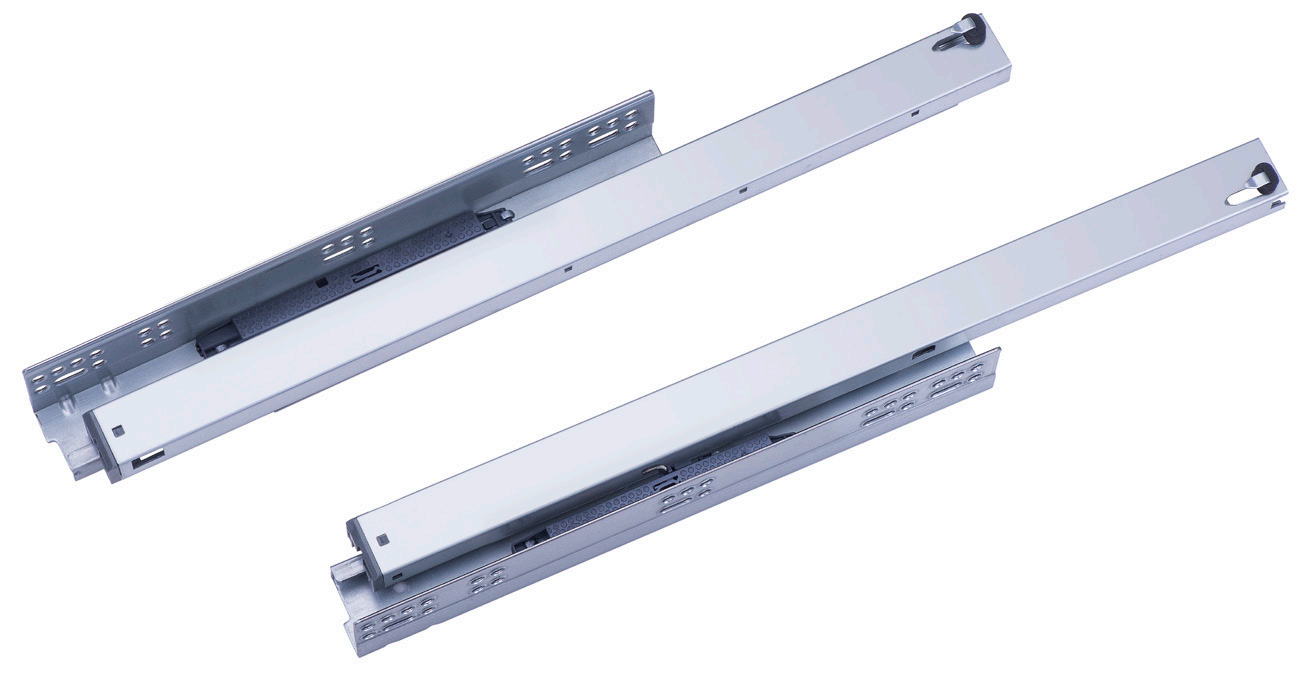

2-Section Full-Extension Push-Open Concealed Drawer Slides
Our two section full extension push-open concealed drawer slides are designed for handleless wooden drawer systems that require full drawer access, stable movement, and reliable opening performance. This concealed slide series is ideal for modern furniture applications that combine clean design with practical usability.
This two section full extension push-open concealed drawer slide series is designed for wooden drawers that require full access and handle-free opening. The integrated push-open mechanism delivers smooth and reliable opening performance, while the concealed undermount structure provides a clean appearance and stable support. Available with pin fixing or 1D handle options, this series is suitable for kitchen cabinets, wardrobes, bathroom furniture, and modern storage systems.
Product Overview
This two section full extension push-open concealed drawer slide series is designed for wooden drawers that require full access and handle-free opening. The integrated push-open mechanism delivers smooth and reliable opening performance, while the concealed undermount structure provides a clean appearance and stable support. Available with pin fixing or 1D handle options, this series is suitable for kitchen cabinets, wardrobes, bathroom furniture, and modern storage systems.
Full extension access
Push-open function
Two section concealed structure
Handleless drawer application
Pin and 1D handle options
Up to 25 kg load capacity
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Two Section Full Extension Push-Open Concealed Drawer Slides |
| Function | Push-Open |
| Extension Type | Full Extension |
| Installation Type | Concealed Bottom Mounted |
| Application | Wooden Drawers |
| Load Capacity | 25 kg |
| Cycle Test | Over 30,000 cycles |
| Drawer Side Panel Thickness | 16 mm / 19 mm |
| Nominal Lengths | 250 / 300 / 350 / 400 / 450 / 500 mm |
| Fixing Options | Pin / 1D Handle |
| Versions | Full Size / Short Size |
| Front Gap Requirement | 4 mm |
Available Sizes & Models
| Model | Front Fixing Option 正面固定方式 |
|---|---|
| BTR-C / MBTR-C | With Pin 带别针 |
| BJR-C / MBJR-C | With 1D Handle 带 1d 手柄 |
Available Options
To match different furniture structures and installation requirements, this concealed drawer slide system is available with multiple front locking and adjustment options.
Pin Type
alternative fixing option for different drawer designs
1D Handle
practical and economical adjustment option
Installation & Dimensions
Detailed installation dimensions are available for 16mm and 19mm drawer side panels. The AJH-SW-A series is designed for concealed bottom mounting and requires cabinet and drawer dimensions to match the specified nominal length.
Product Dimensions
Installation Drilling
Drawer Requirements
Adjustment Guide
FAQ
What is the difference between single extension and full extension push-open concealed drawer slides?
Are these slides suitable for handleless furniture?
What load capacity does this series support?
Do these push-open slides require a front gap?
What lengths are available?
Need drawings, samples, or pricing?
Send your drawer size, application, quantity and target market. We will help match the right concealed slide solution.
