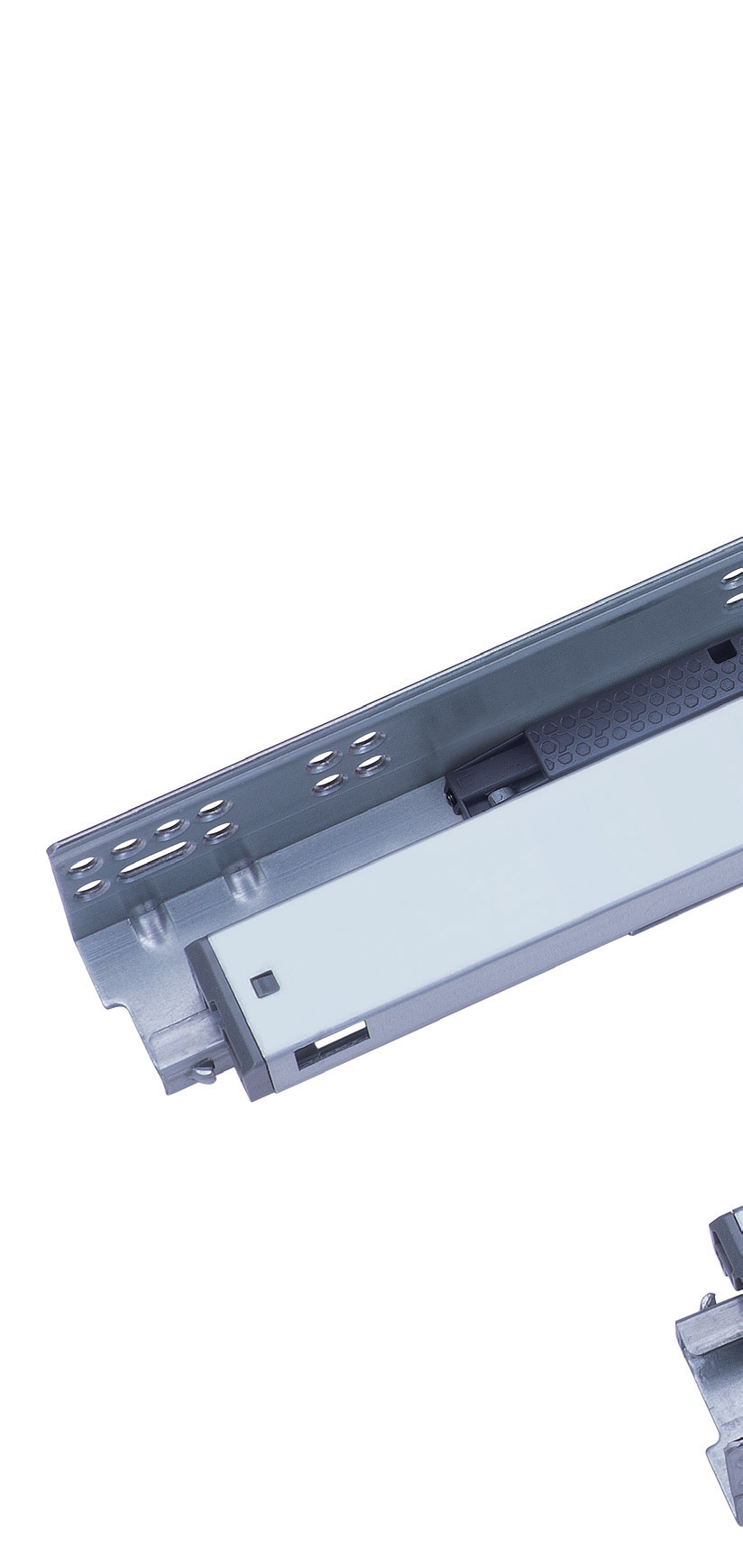

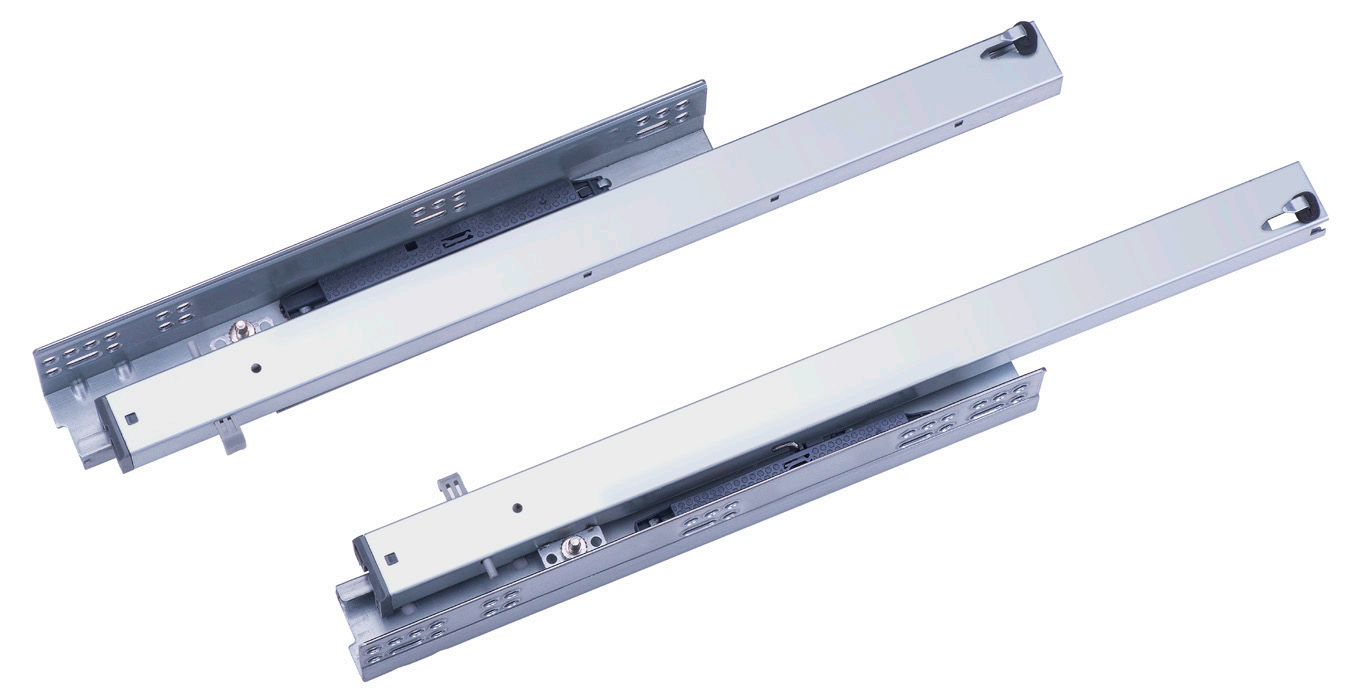

Full-Extension Synchronized Soft-Close Concealed Drawer Slides
Our full extension synchronized soft-close concealed drawer slides are designed for smooth, stable, and quiet drawer operation. With synchronized running, anti-sagging performance, and a precision soft-close mechanism, this series is ideal for wooden drawers in modern cabinetry and furniture applications.
This synchronized soft-close concealed drawer slide series is engineered for premium drawer performance. The synchronized movement system ensures smooth and balanced running, while the precision damping tube and coil spring design provide gentle and reliable soft closing. Featuring an anti-tooth-skipping and anti-sagging structure, the slides offer stable support, full extension access, and long-lasting durability for wooden drawer applications.
PRODUCT OVERVIEW
This synchronized soft-close concealed drawer slide series is engineered for premium drawer performance. The synchronized movement system ensures smooth and balanced running, while the precision damping tube and coil spring design provide gentle and reliable soft closing. Featuring an anti-tooth-skipping and anti-sagging structure, the slides offer stable support, full extension access, and long-lasting durability for wooden drawer applications.
Synchronized Running System
Ensures smoother, more balanced, and more stable drawer movement.
Soft-Close Function
Provides gentle and quiet closing for improved user experience.
Full Extension
Allows full access to drawer contents and maximizes storage usability
Optional Adjustment Solutions
Available with 1D, 2D, or 3D locking device options for easier installation and front panel alignment.
High Load Capacity
Suitable for furniture applications requiring dependable structural support and long-term durability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Concealed Drawer Slides |
| Extension Type | Full Extension |
| Function | Synchronized Soft-Close |
| Installation Type | Undermount |
| Application | Wooden Drawers |
| Load Capacity | 40kg |
| Cycle Test | Over 50,000 opening and closing cycles |
| Drawer Side Panel Thickness | 16 mm / 19 mm |
| Nominal Lengths (NL) | 300 / 350 / 400 / 450 / 500 / 550 mm |
| Front Fixing Options | 1D Handle / 2D Handle / 3D Handle / Metal Handle / Pin |
| Full-Size Cabinet Depth Requirement | NL + 18 |
| Short Size Cabinet Depth Requirement | NL + 8 |
| Full-Size Drawer Length | SKL = NL |
| Short Size Drawer Length | SKL = NL – 10 |
Available Sizes & Models
The AJH-SW-A series is available in multiple nominal lengths for different drawer sizes and furniture applications.
| Model | Drawer Side Thickness | Nominal Length | Structure | Adjustment |
|---|---|---|---|---|
| AJH-SW-A (16) – 300 | 16mm | 300mm | Full Extension | 3D |
| AJH-SW-A (16) – 350 | 16mm | 350mm | Full Extension | 3D |
| AJH-SW-A (16) – 400 | 16mm | 400mm | Full Extension | 3D |
| AJH-SW-A (16) – 450 | 16mm | 450mm | Full Extension | 3D |
| AJH-SW-A (16) – 500 | 16mm | 500mm | Full Extension | 3D |
| AJH-SW-A (16) – 550 | 16mm | 550mm | Full Extension | 3D |
| AJH-SW-A (19) – 300 | 19mm | 300mm | Full Extension | 3D |
| AJH-SW-A (19) – 350 | 19mm | 350mm | Full Extension | 3D |
| AJH-SW-A (19) – 400 | 19mm | 400mm | Full Extension | 3D |
| AJH-SW-A (19) – 450 | 19mm | 450mm | Full Extension | 3D |
| AJH-SW-A (19) – 500 | 19mm | 500mm | Full Extension | 3D |
| AJH-SW-A (19) – 550 | 19mm | 550mm | Full Extension | 3D |
A shorter size version is also available upon request.
Available Options
Different front fixing and adjustment options are available to meet various installation and alignment requirements.
1D Handle
practical and economical adjustment option
2D Handle
standard front adjustment solution
3D Handle
precise multi-directional adjustment for premium furniture
ALUMINUM ALLOY HANDLE
durable option for specific applications
Pin Type
alternative fixing option for different drawer designs
Installation & Dimensions
This series is available in both full-size and short-size versions and supports 16 mm and 19 mm drawer side panels. For 16 mm drawer sides, drawer width is calculated as SKW = LW – 42. For 19 mm drawer sides, drawer width is calculated as SKW = LW – 49. Detailed installation drawings are available upon request.
Product Dimensions
Option
Installation Drilling
Option
Drawer Requirements
Option
Adjustment Guide
Option
Please contact us for technical drawings, mounting hole details and installation support.
Installation & Dimensions
Mounted underneath the drawer for a clean and premium appearance.
Different front fixing and adjustment options are available to meet various installation and alignment requirements.
practical and economical adjustment option
standard front adjustment solution
precise multi-directional adjustment for premium furniture
durable option for specific applications
alternative fixing option for different drawer designs
Product Dimensions
Installation Drilling
Drawer Requirements
Adjustment Guide
FAQ
What is the difference between synchronized concealed drawer slides and standard concealed drawer slides?
Synchronized concealed drawer slides provide smoother and more stable movement through coordinated running on both sides.
Are these slides soft-close?
Yes. This series features an integrated soft-close mechanism for gentle and quiet closing.
What drawer side panel thicknesses are supported?
This series supports 16 mm and 19 mm drawer side panels.
What lengths are available?
Available nominal lengths are 300 mm, 350 mm, 400 mm, 450 mm, 500 mm, and 550 mm.
What fixing options are available?
Available options include 1D handle, 2D handle, 3D handle, metal handle, and pin fixing.
What is the load capacity?
The load capacity is 35 kg.
Need drawings, samples, or pricing?
Send your drawer size, application, quantity and target market. We will help match the right concealed slide solution.
