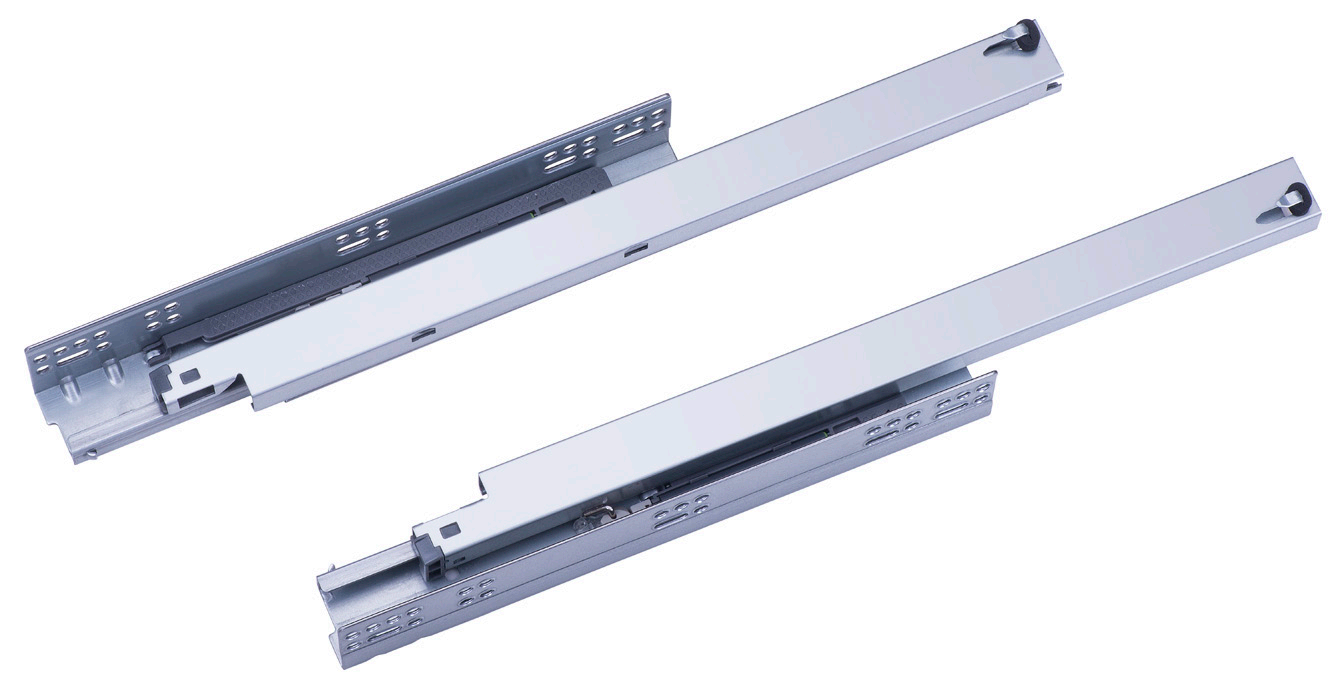

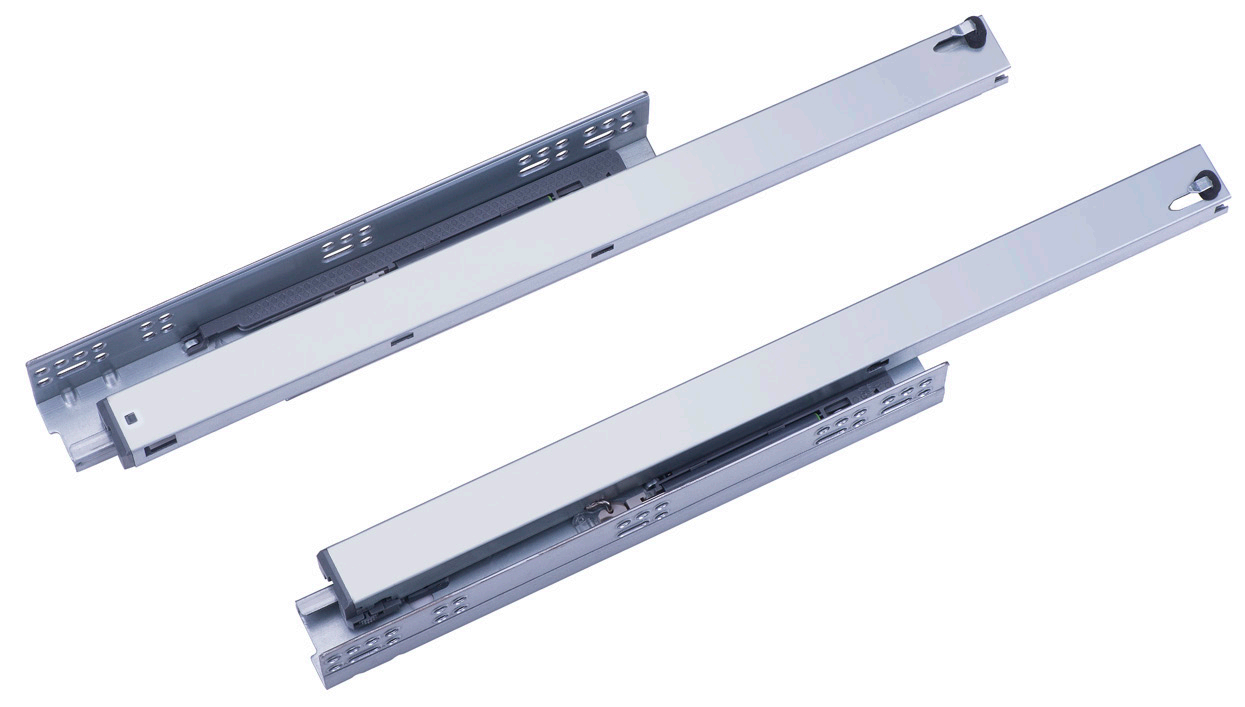

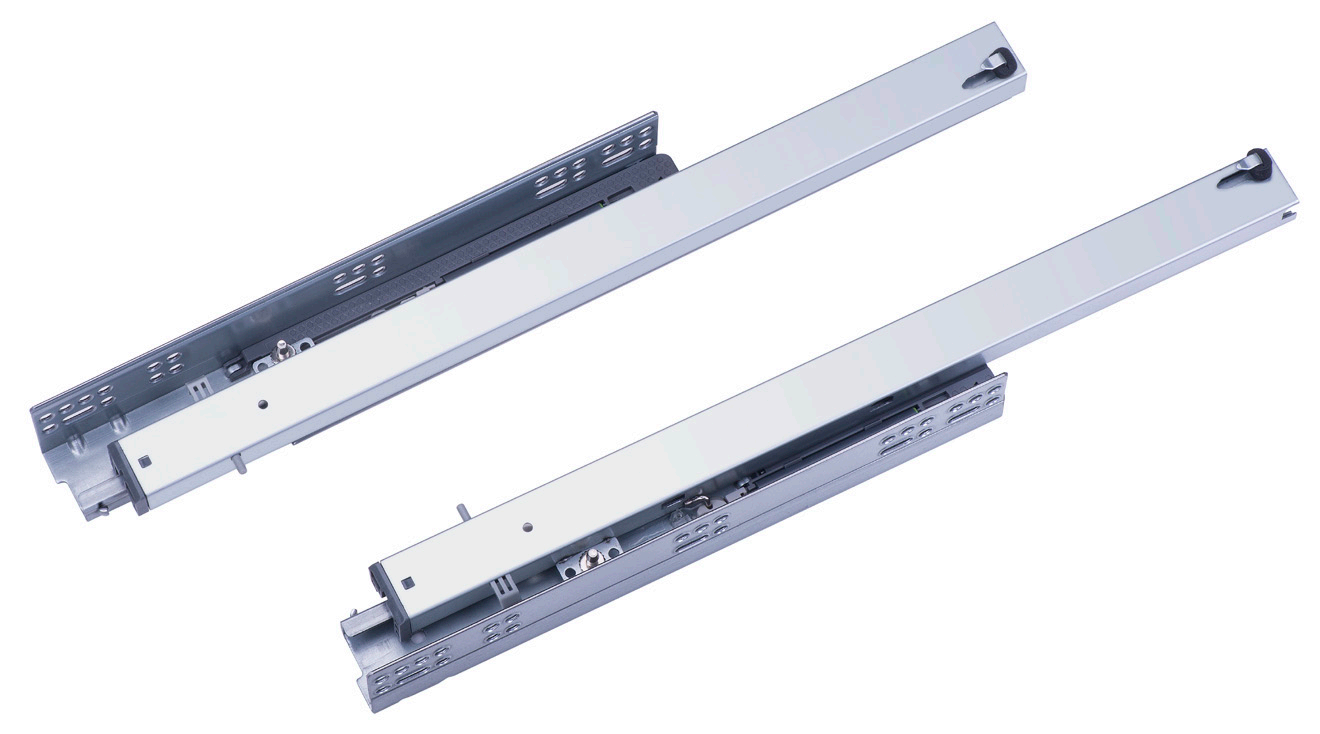

2-Section Full-Extension Concealed Drawer Slides
Our two section full extension concealed drawer slides provide smooth, stable, and quiet movement for wooden drawers. Designed with a soft-close mechanism and full extension access, this series is ideal for furniture applications requiring complete drawer usability and compact concealed installation.
This two section full extension concealed drawer slide series is designed for wooden drawers that require full access, reliable support, and quiet soft-close performance. The concealed undermount structure creates a clean appearance, while the soft-close function ensures smooth and gentle closing. Available with pin fixing or 1D handle options, the series is suitable for kitchen cabinets, wardrobes, bathroom furniture, and household storage systems.
Product Overview
This two section full extension concealed drawer slide series is designed for wooden drawers that require full access, reliable support, and quiet soft-close performance. The concealed undermount structure creates a clean appearance, while the soft-close function ensures smooth and gentle closing. Available with pin fixing or 1D handle options, the series is suitable for kitchen cabinets, wardrobes, bathroom furniture, and household storage systems.
Full extension access
Soft-close function
Two section concealed structure
Pin and 1D handle options
Up to 25 kg load capacity
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Two Section Full Extension Concealed Drawer Slides |
| Function | Soft-Close |
| Extension Type | Full Extension |
| Installation Type | Concealed Bottom Mounted |
| Application | Wooden Drawers |
| Load Capacity | 25 kg |
| Cycle Test | Over 30,000 cycles |
| Drawer Side Panel Thickness | 16 mm / 19 mm |
| Nominal Lengths | 250 / 300 / 350 / 400 / 450 / 500 mm |
| Fixing Options | Pin / 1D Handle |
| Versions | Full Size / Short Size |
Available Sizes & Models
| Model | Front Fixing Option |
|---|---|
| BTH-C / MBTH-C | With Pin |
| BJH-C / MBJH-C | With 1D Handle |
Available Options
To match different furniture structures and installation requirements, this concealed drawer slide system is available with multiple front locking and adjustment options.
Pin Type
alternative fixing option for different drawer designs
1D Handle
practical and economical adjustment option
Installation & Dimensions
Detailed installation dimensions are available for 16mm and 19mm drawer side panels. The AJH-SW-A series is designed for concealed bottom mounting and requires cabinet and drawer dimensions to match the specified nominal length.
Product Dimensions
Option
Installation Drilling
Option
Drawer Requirements
Option
Adjustment Guide
Option
Please contact us for technical drawings, mounting hole details and installation support.
Installation & Dimensions
To match different furniture structures and installation requirements, this concealed drawer slide system is available with multiple front locking and adjustment options.
alternative fixing option for different drawer designs
Product Dimensions
Installation Drilling
Drawer Requirements
Adjustment Guide
FAQ
What is the difference between single extension and full extension concealed drawer slides?
Are these full extension slides soft-close?
What load capacity does this series support?
What fixing options are available?
What lengths are available?
Need drawings, samples, or pricing?
Send your drawer size, application, quantity and target market. We will help match the right concealed slide solution.
